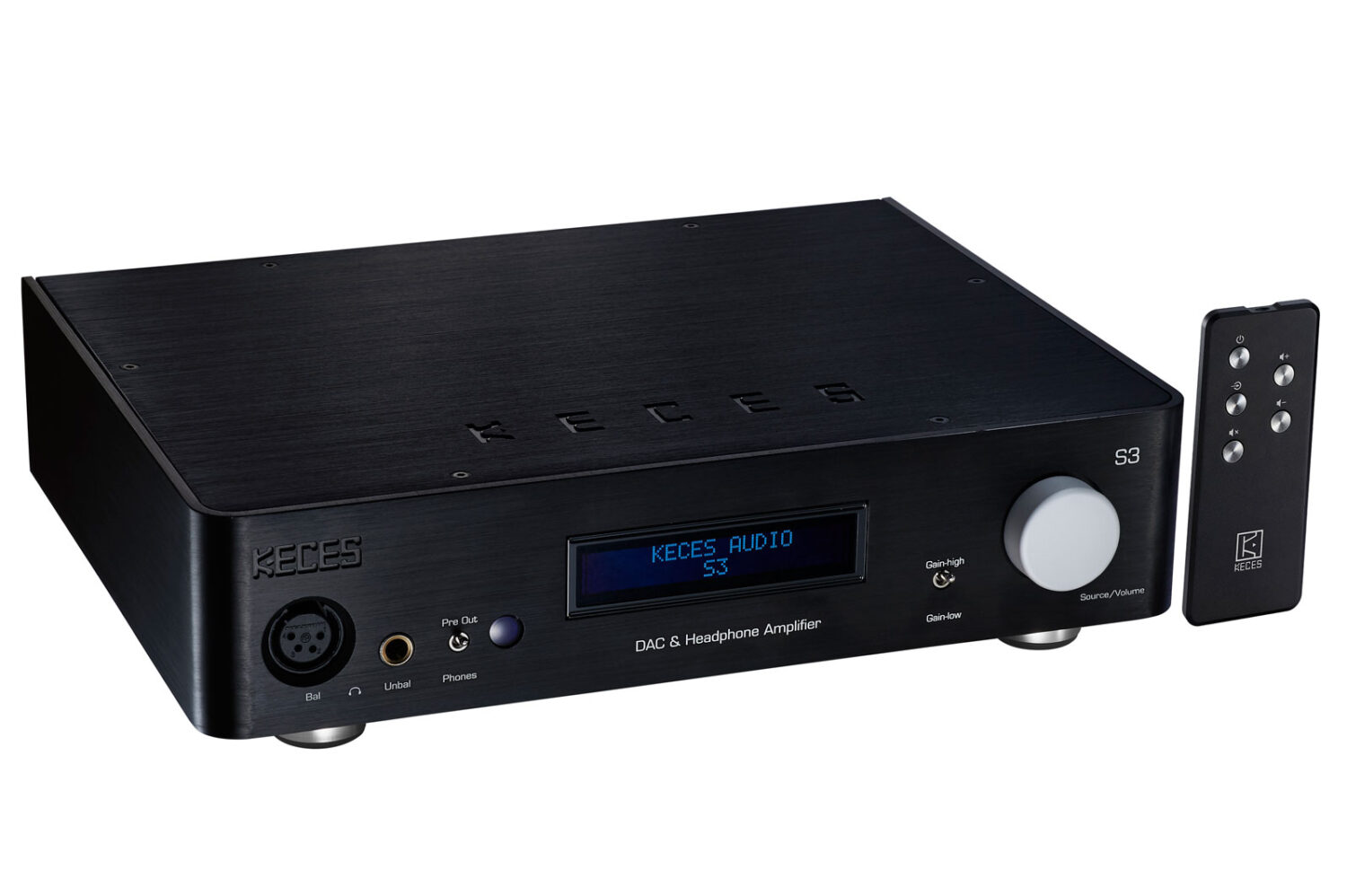

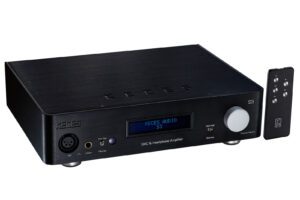

KECES S3 DAC Headphone Amplifier & Preamplifier

19,000 kr

High Quality Toroidal Power Transformer
High-performance DAC-ESS ES9026PRO.
USB DAC: PCM 32 bit/384kHz and DSD DSD64(DoP)/DSD128 (DoP) DSD64/DSD128/DSD256 (ASIO Native).
COAXIAL/OPTICAL DAC: PCM 24 bit/192kHz and DSD DSD64(DoP).
Placed Balanced/Unbalanced Headphone output: Max Output Power 2000mW + 2000mW@32ohms.

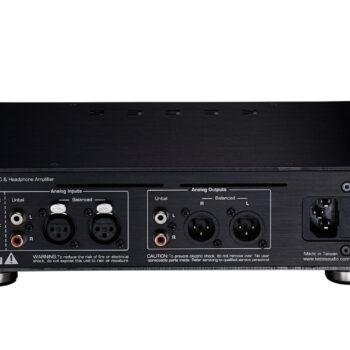

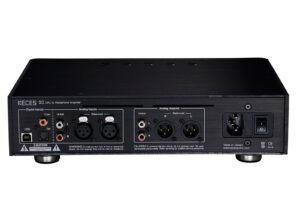

Placed RCA/XLR Input/Output interface: Could be a Preamplifier.
Volume Control System: 128 step attenuator. Accurate control volume to achieve left/right channel balanced.

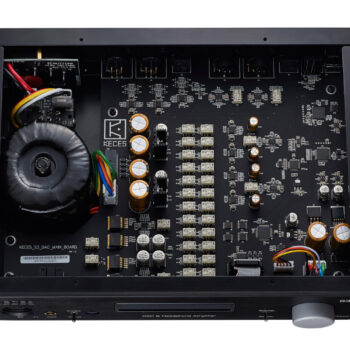

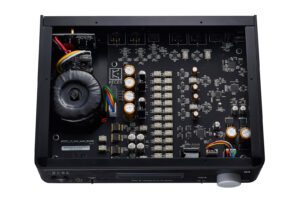

Isolation circuit: Completely separates the grounding of the digital and analog sections.
Volume/Source/Sampling display using OLED has excellent visibility.
The 4mm thickness of the aluminum chassis to effective to blocks EMI/RFI interference.
The full-metal body realizes both vibration control and elegant style in an A4-size body that enables placement on a desktop to
be a PC HIFI system or to be a small stereo system.

Digital Input
COAXIAL PCM support up to 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz. DSD support up to DSD64 (DoP).
OPTICAL PCM support up to 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz. DSD support up to DSD64 (DoP).
USB PCM support up to 16-32Bit/44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz. DSD support up to DSD64(DoP)/DSD128 (DoP) DSD64/DSD128/DSD256 (ASIO Native)
Analog Input
XLR
Input Impedance: 47k Ω.
Max Input Level: 10Vrms.
Input/Output Gain: 0dB

RCA
Input Impedance: 47k Ω.
Max Input Level: 5Vrms.
Input/Output Gain: 0dB

Analog Output
XLR
SNR: >-122dB 20Hz-20kHz A-Weighting.
THD+N: <0.0004% at 1kHz A-Weighting.
Frequency Response: 20Hz-20kHz(+0dB/-0.09dB).
Channel Crosstalk: >-124dB@1kHz.
XLR output: 0-4Vrms Adjustable at 0dBFS.

RCA
SNR: >-119dB 20Hz-20kHz A-Weighting.
THD+N: <0.0007% at 1kHz A-Weighting.
Frequency Response: 20Hz-20kHz (+0dB/-0.03dB).
Channel Crosstalk: >-122dB@1kHz.
RCA output: 0-2Vrms Adjustable at 0dBFS.

Headphone Output
XLR_4PIN
SNR: >-120db 20Hz-20kHz A-Weighting.
THD+N: <0.00115% at 1kHz A-Weighting at 300ohms 100mW.
Frequency Response: 20Hz-20kHz (+0dB/-0.09dB).
Output Impedance: 0.6ohms.
Output Power: 2000mW at 32ohms at THD+N=0.1%.
1200mW at 300ohms at THD+N=0.1%.
650mW at 600ohms at THD+N=0.1%.

6.35mm
SNR: >-108db 20Hz-20kHz A-Weighting.
THD+N: <0.0015% at 1kHz A-Weighting at 300ohms 100mW.
Frequency Response: 20Hz-20kHz (+0dB/-0.09dB).
Output Impedance: 0.6ohms.
Output Power: 1200mW at 32ohms at THD+N=0.1%.
350mW at 300ohms at THD+N=0.1%.
175mW at 600ohms at THD+N=0.1%.

AC Input Voltage
110V-120V, 60Hz / 220V-240V, 50Hz (Switchable)

Power Consumption 30 Watts
Casing 4mm Aluminum
Dimension (WxDxH) 300x220x66mm
Weight
4KG
