SP-332 powerLine

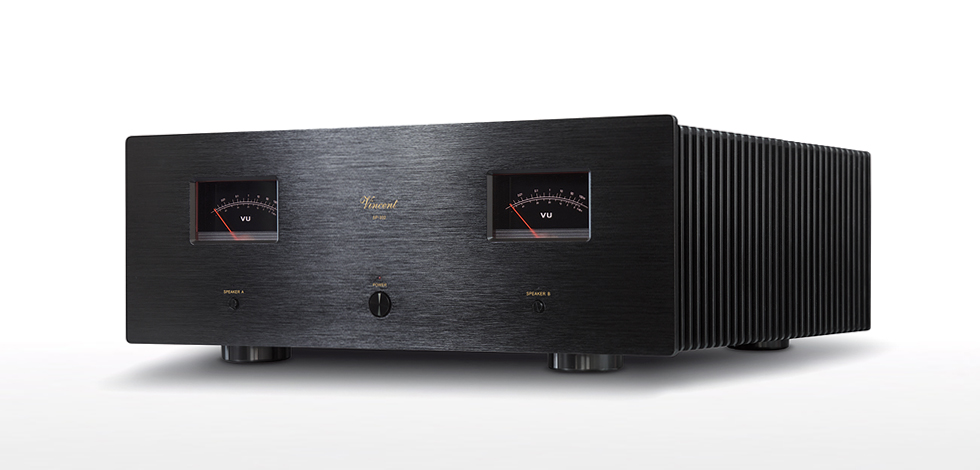

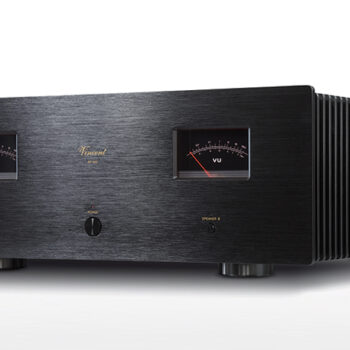

Hybrid Stereo Poweramplifier drawing from the legendary SP-331, the new SP-332 power amplifier was developed. Two additional 6N16 tubes were added to the input section to make the sound signal more warm dn natural. The VU-meters with user selectable colored backlighting complete the timeless design.
Technical Specifications
- Frequency Response: 20 Hz – 20 kHz +/- 0.5 dB
- Nominal Output Power RMS / 8 Ohm: 2 x 150 Watt
- Nominal Output Power RMS / 4 Ohm: 2 x 250 Watt
- Harmonic Distortion: < 0.1 % (1 kHz, 1 Watt)
- Input Sensitivity: 1.35 Volt
- Signal-Noise Ratio: > 91 dB
- Input Impedance: 47 kOhm
- Max. Power Consumption: 531 Watt

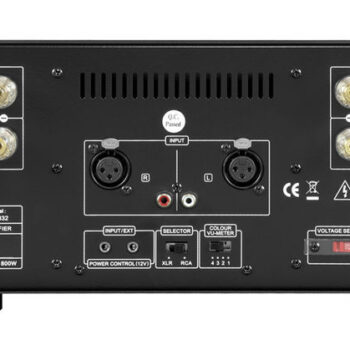

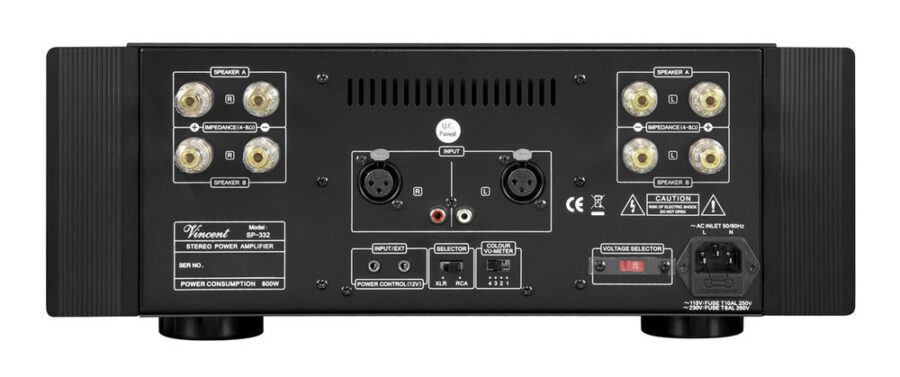

- Inputs: 1 x Stereo RCA, 1 x Stereo XLR, 1 x 3.5 mm Jack (Power Control)
- Outputs: 2 x 4 Speaker Terminal, 1 x 3.5 mm Jack (Power Control)
- Tubes: 2 x 6N16, 1 x 6N15
- Colour: Black / Silver
- Weight: 21 kg
- Dimensions (W x H x D): 430 x 165 x 430 mm
