DIAMOND DOMES
Pure and brilliant.
Pure diamond is the ultimate material for speaker membranes – that’s why we use a Cell diamond tweeter from Accuton. In the high-frequency range, its stiffness-to-weight ratio and internal sound velocity are unsurpassed.
The sonic character of our diamond tweeter is not what you might expect. Our crossover has been carefully designed to bring out the pure and clear sound of this precious stone, softening any harshness.
Diamond is also the best heat conductor known to man, which is essential for loudspeaker membranes, providing the best heatsink for the voice coil – resulting in high power handling and very low compression.
CERAMIC DOMES
Advanced tech, natural sound.
Stiff ceramic is light, yet extremely rigid, making it one of the best materials for speaker membranes – it’s also known as Sapphire.
Our ceramic domes have a high internal damping factor, due to a refined electrochemical process. The membrane has a high material resonance frequency, meaning distortion is minimal. This offers a level of clarity that is perfect for high end speaker domes.
BASS DRIVERS
Low frequencies.
Low distortion.
Cell bass driver units have long excursion, extremely low distortion levels and a hidden surround. Made of aluminium sandwich honeycomb, the drivers offer rich, dynamic bass performance with a powerful presentation.
CABINETS
Form and function unified.

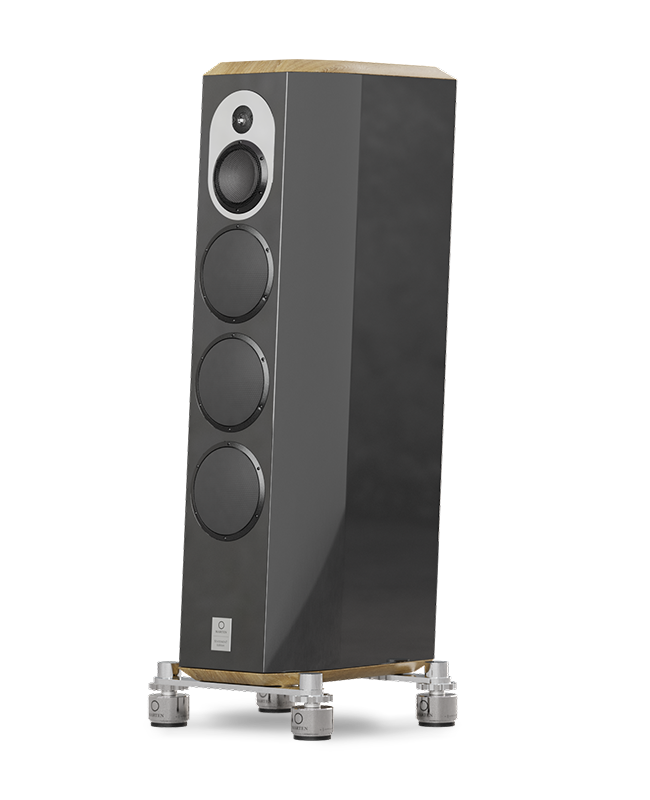

Mingus Quintet 2 is tapered to create less sound reflections and a sleek form. Crafted with the finest materials, it is finished with solid wood tops and bottoms to reduce resonance.
We use specially selected, medium-density fibreboard with optimum rigidity to create high-quality, resonance-free cabinets. The internal structure and bracing keep the cabinet rigid, whilst inside the resonance is further dampened with advanced materials.
Each cabinet is finished with precision veneer and lacquering. The lacquer is carefully built up of 7 layers, each hand-polished in between drying.
INTERNAL WIRING
Premium cables for pure sound.
We use Jorma internal wiring, for exemplary quality and performance. Handmade in Sweden, the cables use separate + and – for enhanced shielding and the highest quality copper.
This offers natural, transparent sound; the perfect choice for our speakers.
Cables are integral components, so they must work harmoniously with our design and build. Jorma delivers exactly what a Marten speaker needs.
FEET
A new level of isolation.
The reduction of resonance is important to the design of our speakers – it can mean the difference between a good speaker and a great speaker. With IsoAcoustics we created Marten Isolators. This precision product allows the cabinet to be completely isolated from the floor, reducing resonance and distortion – leaving the soundstage free.
CROSSOVER
First class as always.
The first order crossover has been integral to Mingus since inception. With refinements, today’s crossover is even better – it’s more open, cleaner and more dynamic. And very powerful in the bass frequencies.
The first order crossover makes it possible to have perfect time and phase coherence; and flawless time coincidence. This means that all registers are generated at the exact same moment, as it was recorded.
Mingus Quintet 2 can be upgraded to Statement Edition, featuring Jorma Statement internal cables and higher quality crossover components.
TECHNICAL SPECIFICATIONS
Speaker (front)
1 x 0.75″ Diamond
1 x 5″ Ceramic
3 x 7″ Aluminium sandwich
Frequency range
24-100000 Hz +-2dB
Power rating
300 W
Sensitivity
88 dB / 1 m / 2.83V
Impedance
6 ohm (3.4 Ohm min)
Type
3-way bass reflex
Crossover frequency
first order: 370 & 4000 Hz
Terminals
WBT Nextgen Single-wire
Internal wiring
Jorma
Cabinet
25-40 mm:s fibre laminate cabinet; Solid wood top and bottom; advanced damping mat
Stands
Mirror polished stainless steel with Marten Isolators
Dimensions W x H x D
28 x 109 x 38 cm
(11 x 42.9 x 15″)
Net weight
63 kg (140 lbs)
