OBS! Pris avser 1st högtalare

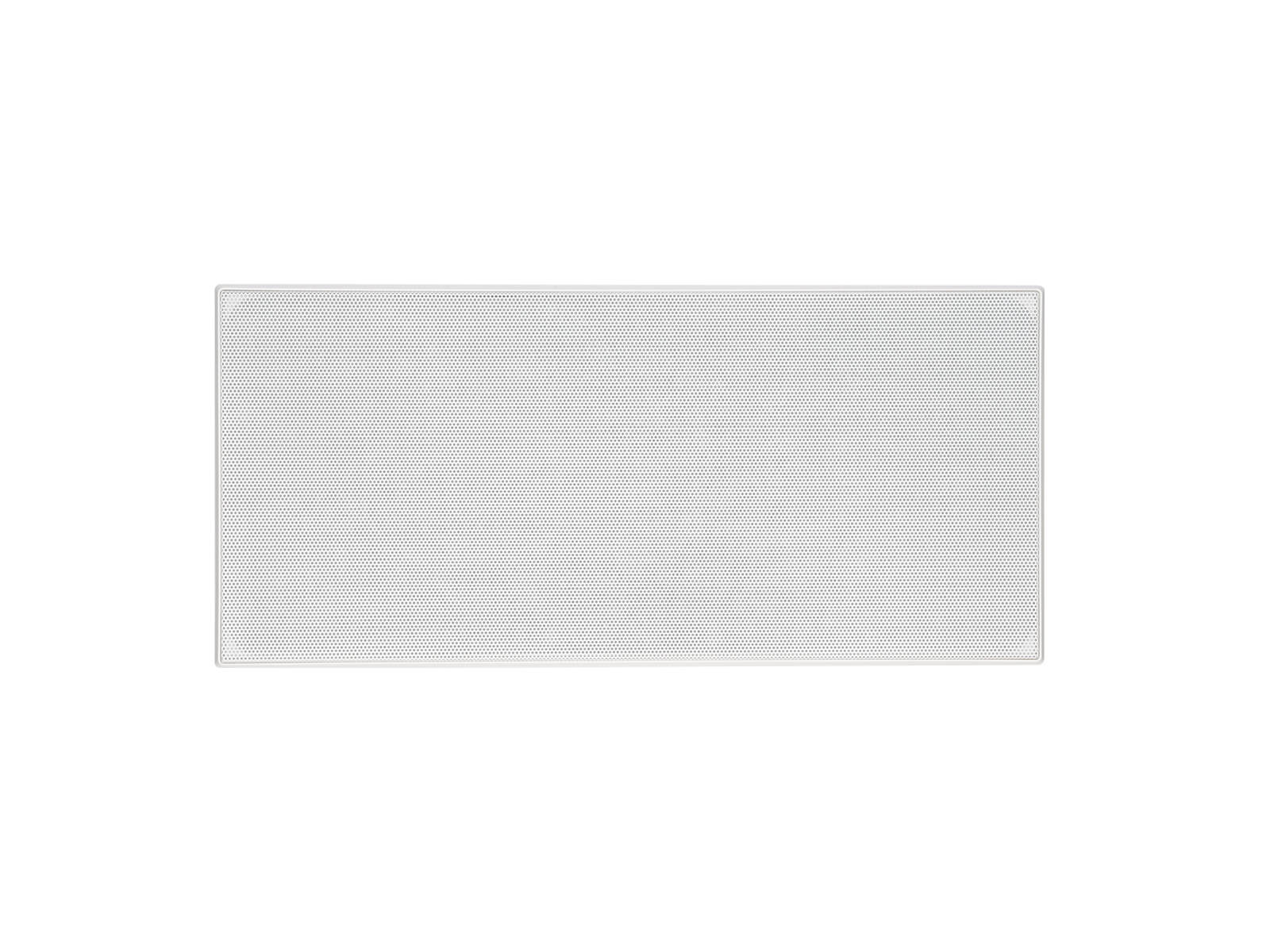

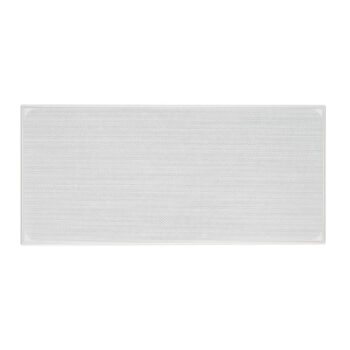

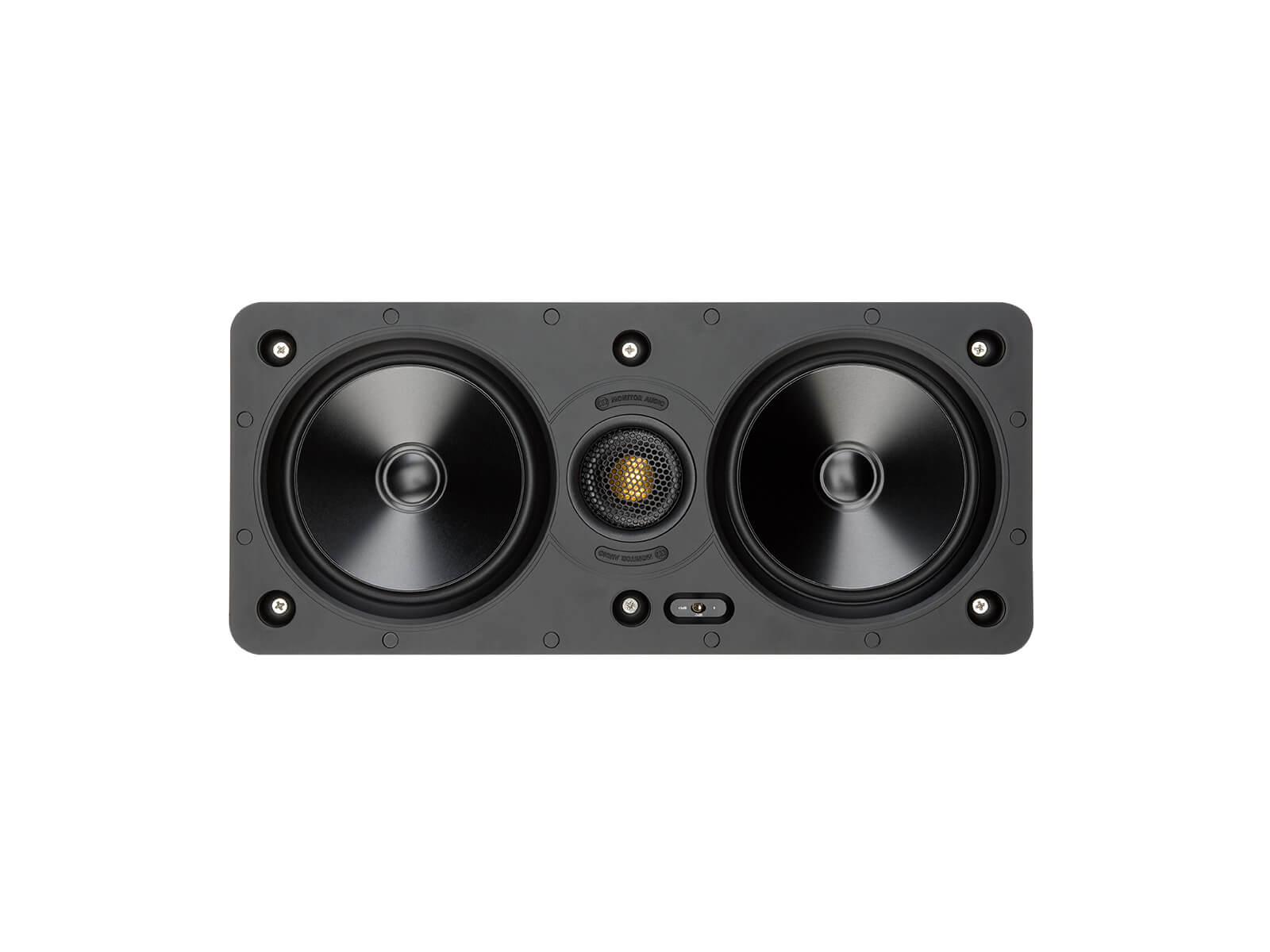

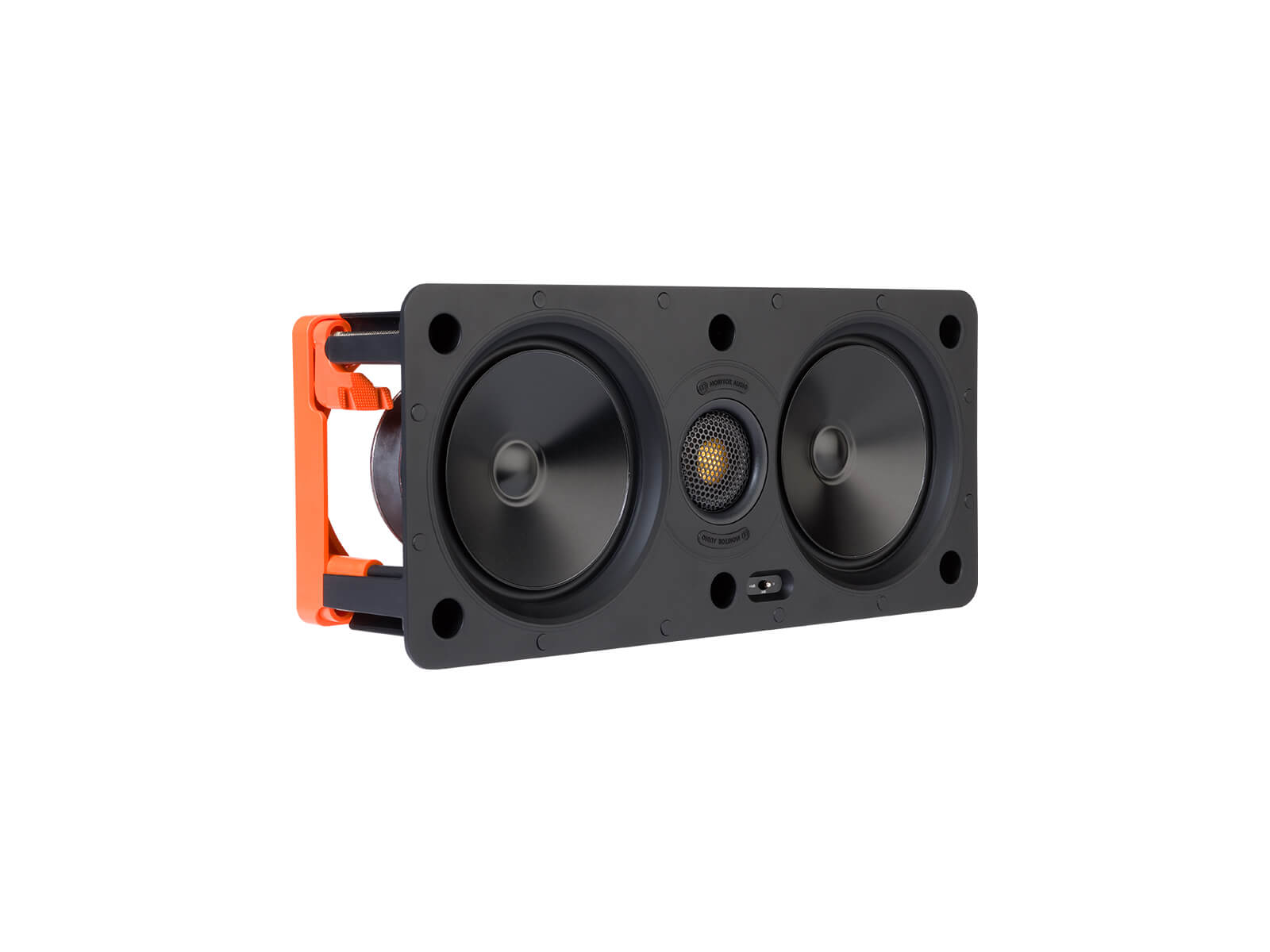

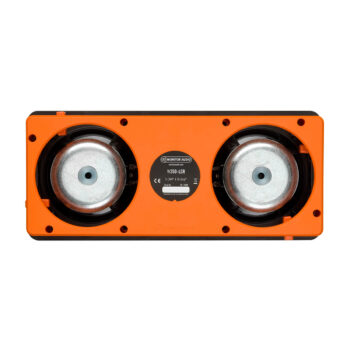

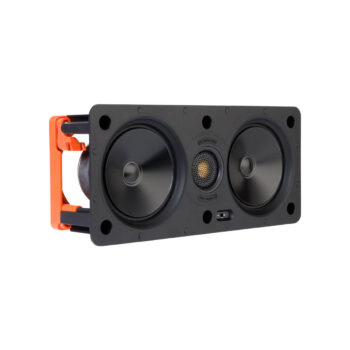

W250-LCR
The 2-way W250-LCR in-wall model with 5-inch drivers features Monitor Audio’s C-CAMcones coupled with a pivoting version of our C-CAM Gold Dome tweeter.
These in-wall models can be used vertically or horizontally: the ideal aspect for centre-channel applications in discreet home theatre systems.
This model also provides high frequency level adjustment for super-fine audio tuning.
Frequency Response
60 Hz – 30 kHz
Nominal Impedance
8 ohms
Sensitivity (1W@1M)
88 dB
Maximum SPL
108 dBA
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
30 – 100 W
Drive Unit Complement
2 x 5″ C-CAM cone bass driver
1 x 1″ (25 mm) C-CAM pivoting Gold Dome tweeter
Controls
High Frequency Level Switch (+3 dB / 0 dB / -3 dB)
Overall Dimensions (Including Grille (H x W x D))
177.4 x 385.2 mm (7 x 153/16”)
Overall Depth (Including Grille)
105 mm (41/8”)
Mounting Depth
100.2 mm (315/16”)
Cut-Out Dimensions
145 x 353 mm (53/4 x 137/8”)
Required Clearance for Doglegs in Centre Configuration 400 x 197 mm (15 3/4” x 7 3/4”)
Fixing Type
Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.76 kg (8.3 lb)
Pre-Construction Bracket
Sold As
Single Unit
