P6
“We have already chosen the speakers (for our demo/test room): it must be the P6 / P15 from Swedish Procella. These compact but potent speakers are not only one of the most powerful theater systems we’ve heard, but they are also extremely revealing and is therefore a useful tool when we test home cinema amplifiers and other electronics.“ LJUD & BILD magazine
Compact and elegant, the P6 brings Procella reference quality audio and a very wide dynamic range in a slim-profile cabinet (only 5.3” deep) that makes for easy integration with flat-screen televisions, projection screens, and surround speaker environments.
Description
“These compact but potent P6 speakers are one of the most powerful theater systems we’ve heard”
LJUD & BILD magazine

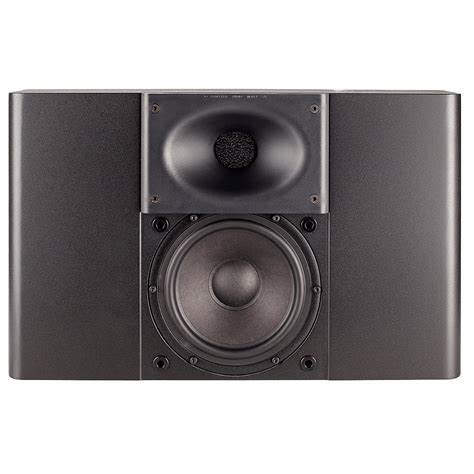

Compact and elegant, the P6 brings Procella reference quality audio and a very wide dynamic range in a slim-profile cabinet (only 5.3” deep). This makes it easy for integration with flatscreen, projection screens, and surround speaker environments. A 6.5” high-efficiency woofer driver combines with an Italian pro 1” high-frequency compression driver mounted on a Procella constant directivity waveguide. It produces uncompressed dynamics at high output levels with lifelike clarity for music and movies. Suitable for stereo, front channel, surround channel, and height channel use. Identical VoicesTM timbre-matched to all other Procella speaker models. Perfect with a P15A or P15 subwoofer.
Specifications
| IMPEDANCE | 8 Ohms nominal, Above 10 Ohm in working range, phase angles less than 30 degrees |
|---|---|
| POWER HANDLING | Continous 100 Watt, Peak 300 Watt |
| SENSITIVITY | 1m/1w 90dB |
| MAXIMUM SPL | in baffle wall 116dB continuous, 122dB peak |
| FREQUENCY RESPONS | -3dB points 70Hz and 20kHz |
| DISPERSION PATTERN | -6dB Constant directivity; 90°H x 60°V from 2.0kHz |
| CROSSOVER | 4th Order Linkwitz-Reilly 1.9kHz, BSC |
| COMPONENTS | High Frequency 1” driver with a Polyester diaphragm on a Procella designed elliptical constant directivity wave guide, Midrange 6.5” driver with 40mm voice coil in 9 litre sealed box |
| CONNECTIVITY | Gold plated large diameter binding posts |
| CONSTRUCTION | Void free MDF internally cross braced Studio vinyl finish as standard |
| DIMENSIONS AND WEIGHT | HxWxD 11.4” x 18.5” x 4.9” / 290 x 470 x 125 mm / 20.1 Lbs / 9.1 Kg |
| SHIPPING CARTON | HxWxD 9.5″ x 22.8″ x 15″ / 240 x 580 x 380 mm / 23.1 Lbs / 10.5Kg |
| WALL MOUNT | Wall mount bracket included |
| ASSEMBLY | Sweden 100% QC testing |
