Technology
- Quick and easy installation
- High performance C-CAM tweeter and driver technology
- Robust solid sealed, high density polypropylene enclosure – UV rated.

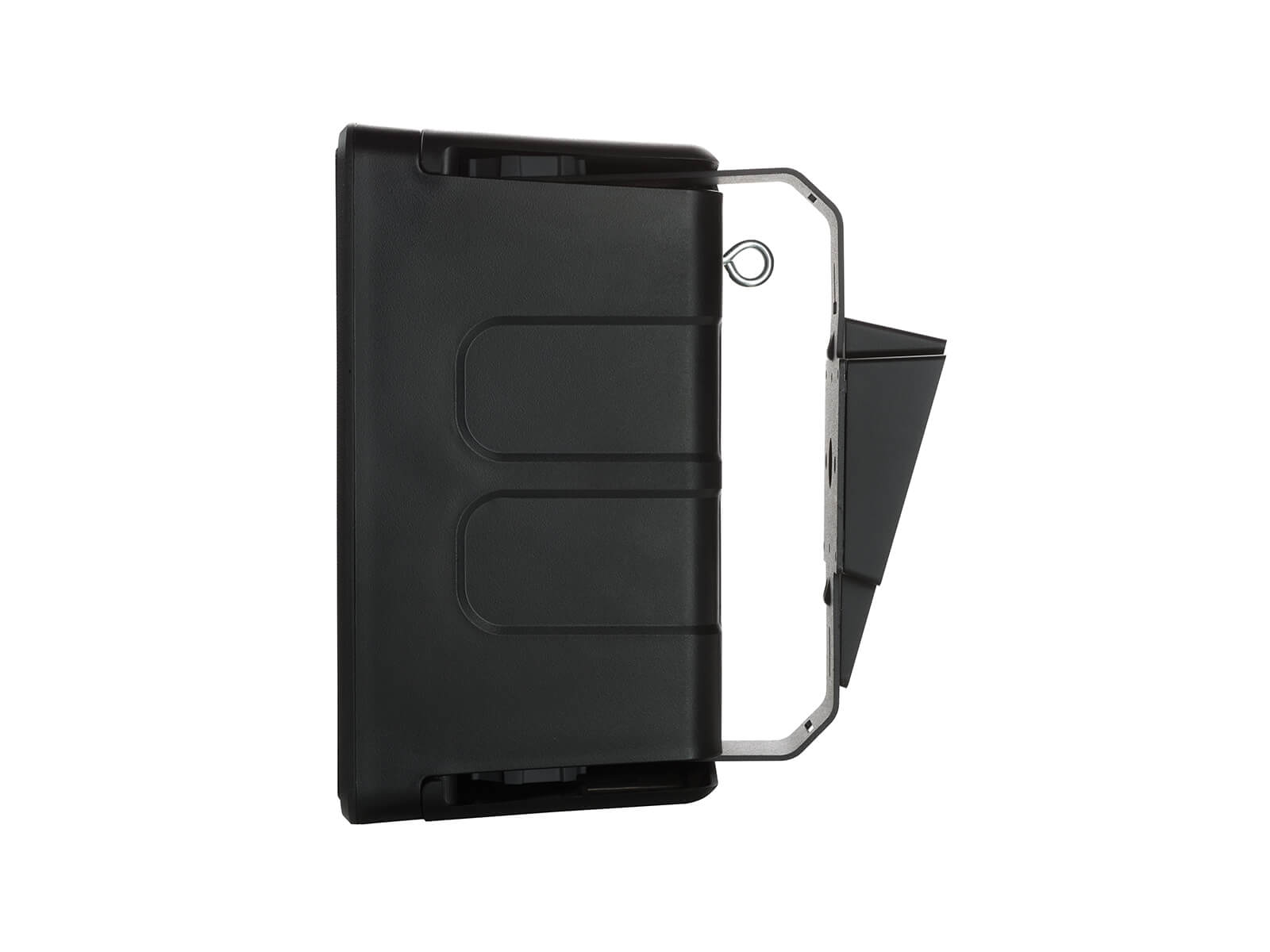

- Full installation flexibility: 175º rotational bracket, (it also features angled sections and screw holes to provide corner fixing.)
- 15º angled wedge supplied for additional bracket versatility
- Anchor point for security chain attachment
- ABR (Auxiliary Bass Radiator) for added low frequency punch
- Aluminium grilles prevent rust
- *Textured white and black finish, paintable to suit décor (paint mask supplied)
- Rotational ‘M’ logo to align with portrait or landscape positions.
Frequency Response
63 Hz — 30 kHz
Sensitivity (1W@1M)
88 dB
Nominal Impedance
8 ohms
Maximum SPL
108.8 dBa
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
15 — 100 W
Drivers
1 x 165 mm (6 1/2″) C-CAM bass/ mid-range driver
1 x 25 mm (1″) C-CAM Gold Dome tweeter
External Dimensions (H x W x D)
325 x 185 x 178.5 mm (1213/16 x 75/16 x 7″)
Overall Depth (Including Bracket)
235 mm (91/4”)
Total Bracket Pivot Angle
87.5 degrees (from central position)
Fixed Angled Block (Portrait)
15 degrees
Connection
Gold plated ’push’ type terminals
Environmental Protection Rating
IP55
Colour / Finish
White/Black
Weight (packaged)
4.62 kg (10 lb 2 oz)
Sold As
Pair
