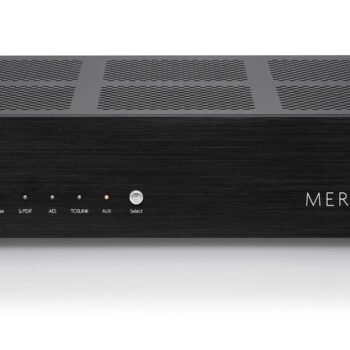

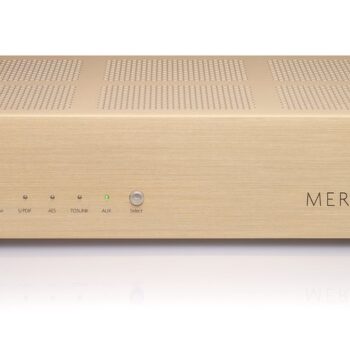

DAC1. For music enthusiasts. And aesthetes.
The DAC1 is the first audiophile product from the Swiss manufacturer dafraud GmbH. It claims to offer music reproduction at the highest level of sonic quality. Optimized layout, by ear selected components for analog and digital circuits, reclocking of the input signal without resampling, discrete and balanced music path, class-A buffering, sophisticated selective power supplies make listening to music a unique experience. Ready for demonstration in selected stores.
Type: PCM only digital to analogue converter
Distortion THD+N: <0.012%
Signal to noise: 120dB

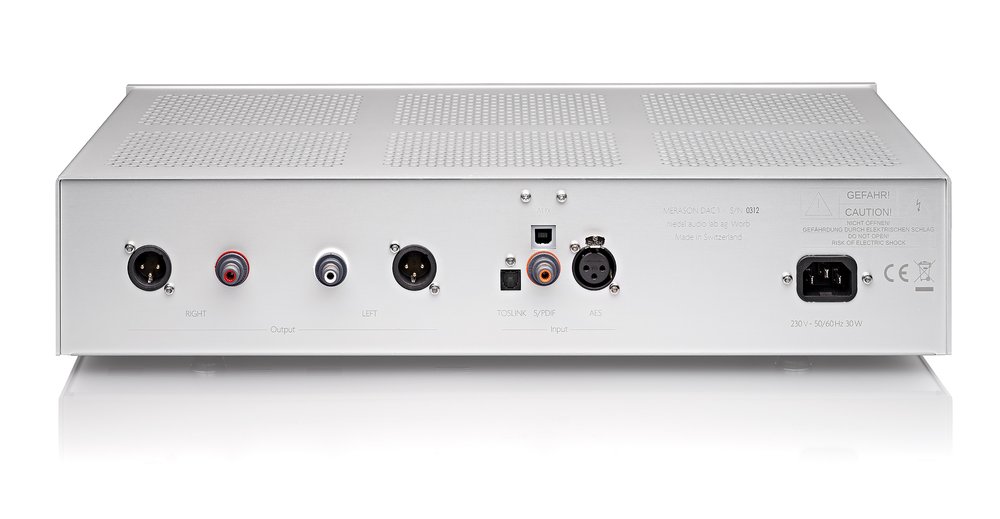

Digital Inputs: USB 2.0, coax on RCA, optical on Toslink, AES on XLR
Wireless inputs: none
Analogue outputs: single ended RCA, balanced XLR
Supported sample rates: PCM 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Output Voltage: 3V RMS balanced, 1.5V RMS single ended
DAC chip: 2x BurrBrown 1794A
Dimensions HxWxD: 100 x 450 x 290mm
Weight: 8kg (11kg with stainless steel front)
Warranty: 2 years
