The Antipodes K30 integrates two separately powered and isolated computation engines:
• A high power server engine to enable Server Apps to handle a large music library, re-assemble internet streams to recover the original file’s sound quality, handle DSP features without loss of quality, and to serve a clean digital stream to the Player App. The K30 server engine is second in audio performance only to the exceptional server engine used in the K50 and K40. The Server stage runs apps like Roon Server, Squeeze Server, HQPlayer Server, Minimserver, MiniDLNA, SONOS Server and PLEX Server.
• The K30 uses the same advanced player engine as is used in the K50, to run the selected Player App to provide high quality USB Audio output. The player engine runs Player Apps compatible with your chosen Server App, such as Roon Player, Squeeze Player, HQPlayer NAA and MPD.

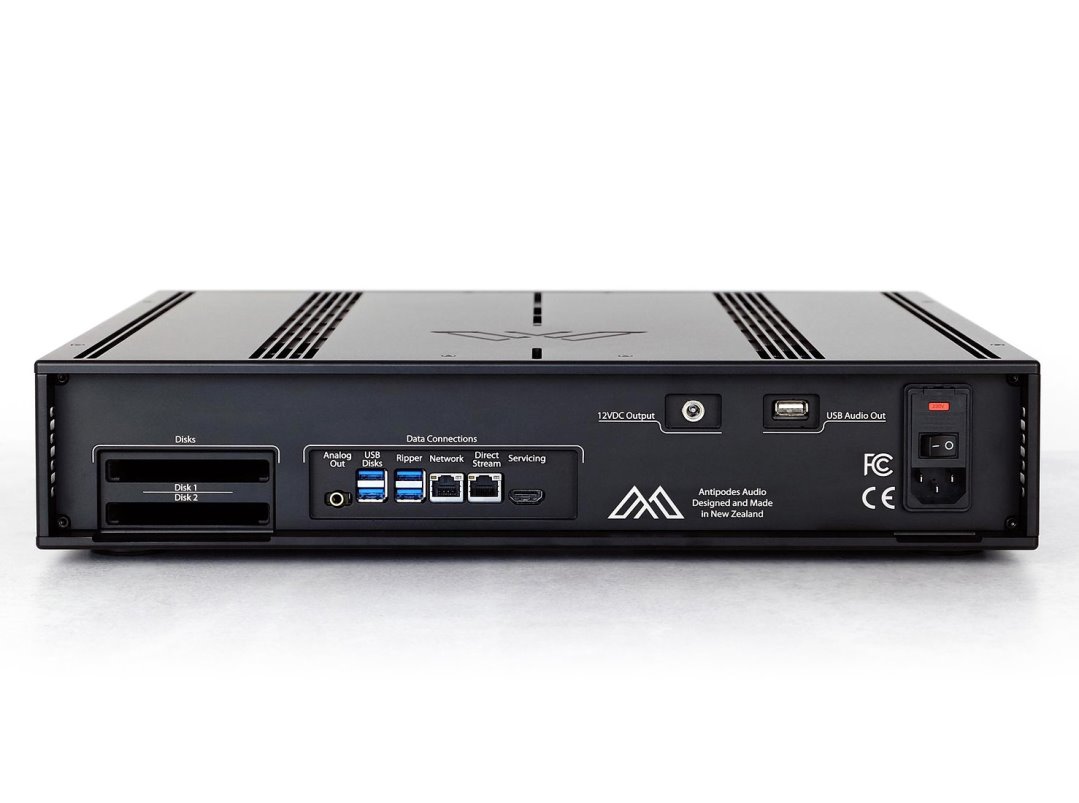

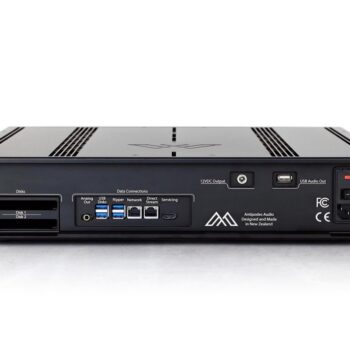

K30 Connections:
• USB Audio 2.0 Output
• Insert up to two 2.5″ Sata SSDs. They will click securely in place.
• Analog Headphone Output
• Two USB Ports for USB Disks
• Dual USB Ports For External CD Ripper (eg. Antipodes K10)
• Ethernet Connection to Network on RJ45
• Ethernet Connection for Direct Streaming to Streamer on RJ45
• Servicing Port
• Mains Power IEC Inlet – User Switchable 110-120vac to 220-240vac
Specifikation:
• Cooling: Passive Fanless Silent
• Direct Stream Ethernet Output: Yes
• Case: CNC Machined From Solid Alloy
USB Audio 2.0 Output:
• PCM to 32 bit/768kHz
• DoP to DSD256
• Native DSD to DSD512
Analog Output:
• N/A
Optional user installable Storage:
• 2 Bay SSD Slide-In
• Up to 16TB
Hardware Modules:
• V5.2H
• V5X
AC Supply:
• 110-120VAC 60Hz
• 220-240VAC 50Hz
• Power Supply: Internal – 1 x HSL80
Övrigt:
• Mått: (BxHxD) 445x78x370mm
• Vikt: 10,0 kg
