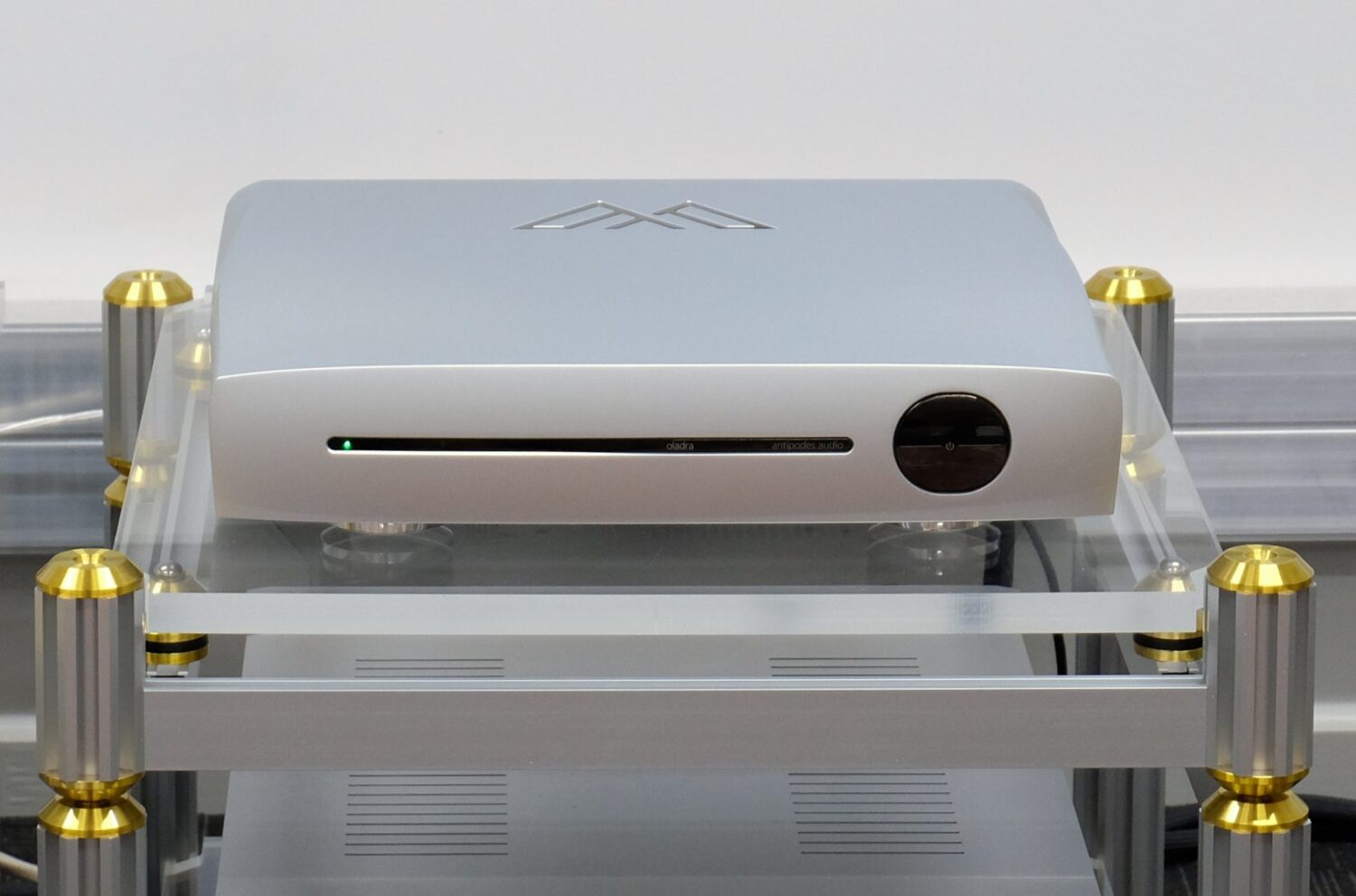

Oladra
Server – Player – Reclocker
With ground-breaking fidelity to the original event, the Oladra brings you closer than ever before to the sound of real voices and real instruments making vibrant, dramatic and captivating music in real spaces.
The Oladra employs an innovative new Server engine, plus enhanced Player and Reclocker engines. A new power scheme involves a triple cascade power supply macro-topology integrating four unique micro-topologies.
User installable SSD storage, one-click to select from the world’s best playback solutions, with a full range of digital audio outputs.
Specifications

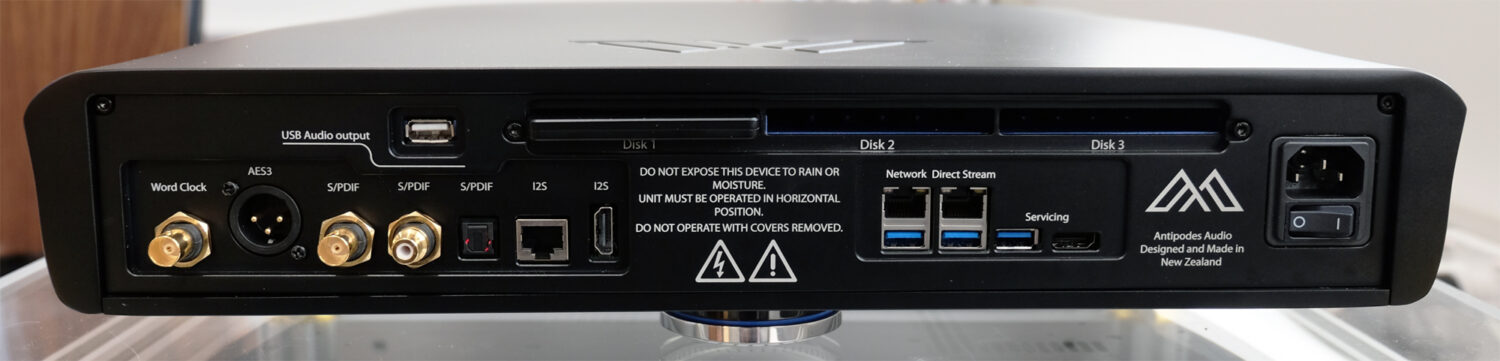

Direct Stream Ethernet Output | Yes |
USB Audio 2.0 Output – PCM to 32 bit/768kHz – DoP to DSD256 – Native DSD to DSD512 | Yes |
S/PDIF Output on RCA & BNC – PCM to 24bit/192kHz – DoP to DSD64 | Yes |
AES3 Output on XLR – PCM to 24bit/192kHz – DoP to DSD64 | Yes |
I2S Output on HDMI & RJ45 – PCM to 32bit/384kHz – DoP to DSD256 – Native DSD to DSD512 | Yes |
User installable storage | 3Bay SSD Slide-In Up to 24TB |
Hardware Modules | V7H Server V7X Player R2i Reclocker |
AC Supply – 110-120VAC 60Hz – 220-240VAC 50Hz | Switchable By Authorised Technician |
Width | 445mm or 17.5″ |
Depth | 370mm or 14.5″ |
Height | 80mm or 3.2″ |
Weight | 21kg or 46lb |
3 Years Warranty Extendable to 5 Years with Registration | Yes |
