Power by High Quality Linear Power Supply (Ephono Power).

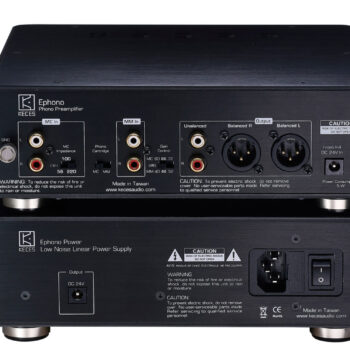

Balanced and unbalanced outputs.
Variable MC impedance adjustment of 56/100/220 ohms and MM 47k ohm.
Gain select for 40dB/46dB/52dB MM and 60dB/66dB/72dB MC.
RIAA accurate to within 0.2dB.
Ephono Power have Over Temperature Protection (OTP).
The 3mm thickness of the aluminum chassis to effective to blocks EMI/RFI interference.
SPECS:
Ephono Specification
Frequency Response
20-20Khz
THD
MM <0.004%, MC <0.03%.
S/N Ratio
MM 86dB A-weighted, MC 78dB A-weighted.
Input Impedance
MM 47k ohm, MC variable 56/100/22 ohm.
Input Capacitance
100PF
Gain
40dB/46dB/52dB for MM, 60dB/66dB/72dB for MC.
Power In
DC 24V (Power by Ephono Power)
Power Consumption
5W
Casing
4mm Aluminum
Dimension (WxDxH)
220x220x66mm
Weight
2KG
Ephono Power Specification
AC Input Voltage
110V-120V, 60Hz / 220V-240V, 50Hz (Switchable)
DC output Voltage
24V/2A
Power Consumption
60 Watts
Casing
3mm Aluminum
Dimension (WxDxH)
220x220x66mm
Weight
3KG
