KECES P8 Ultra Low Noise Linear Power Supply

11,000 kr

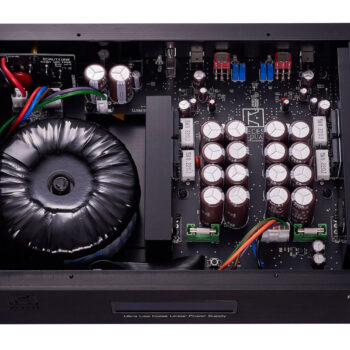

High Quality Toroidal Transformer provide pure power.
Separate ground for each output rail.
Ultra low ripple noise.
No humming or buzz noise for 50Hz and peak load.

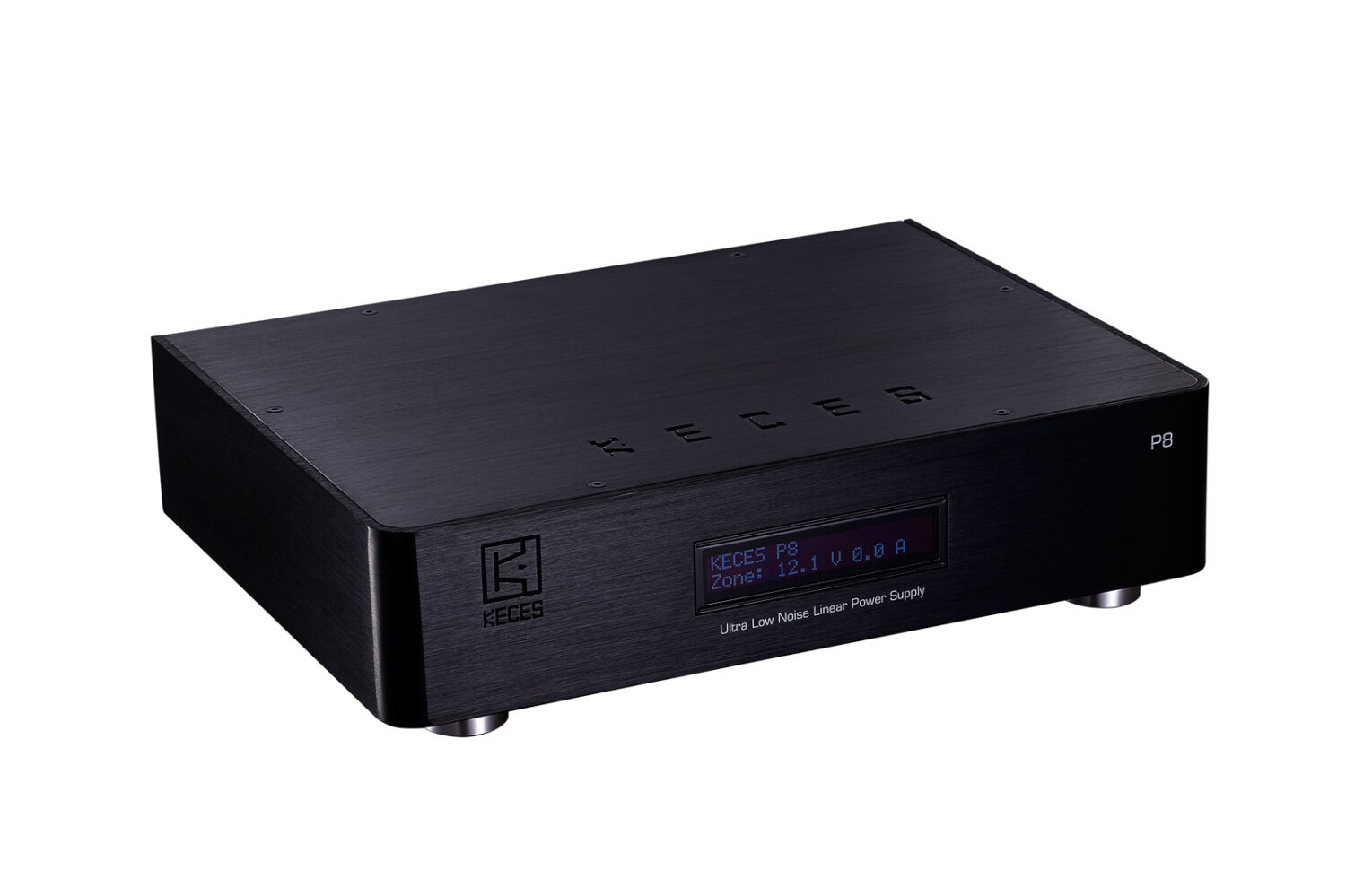

OLED display currently output voltage and currently output ampere.

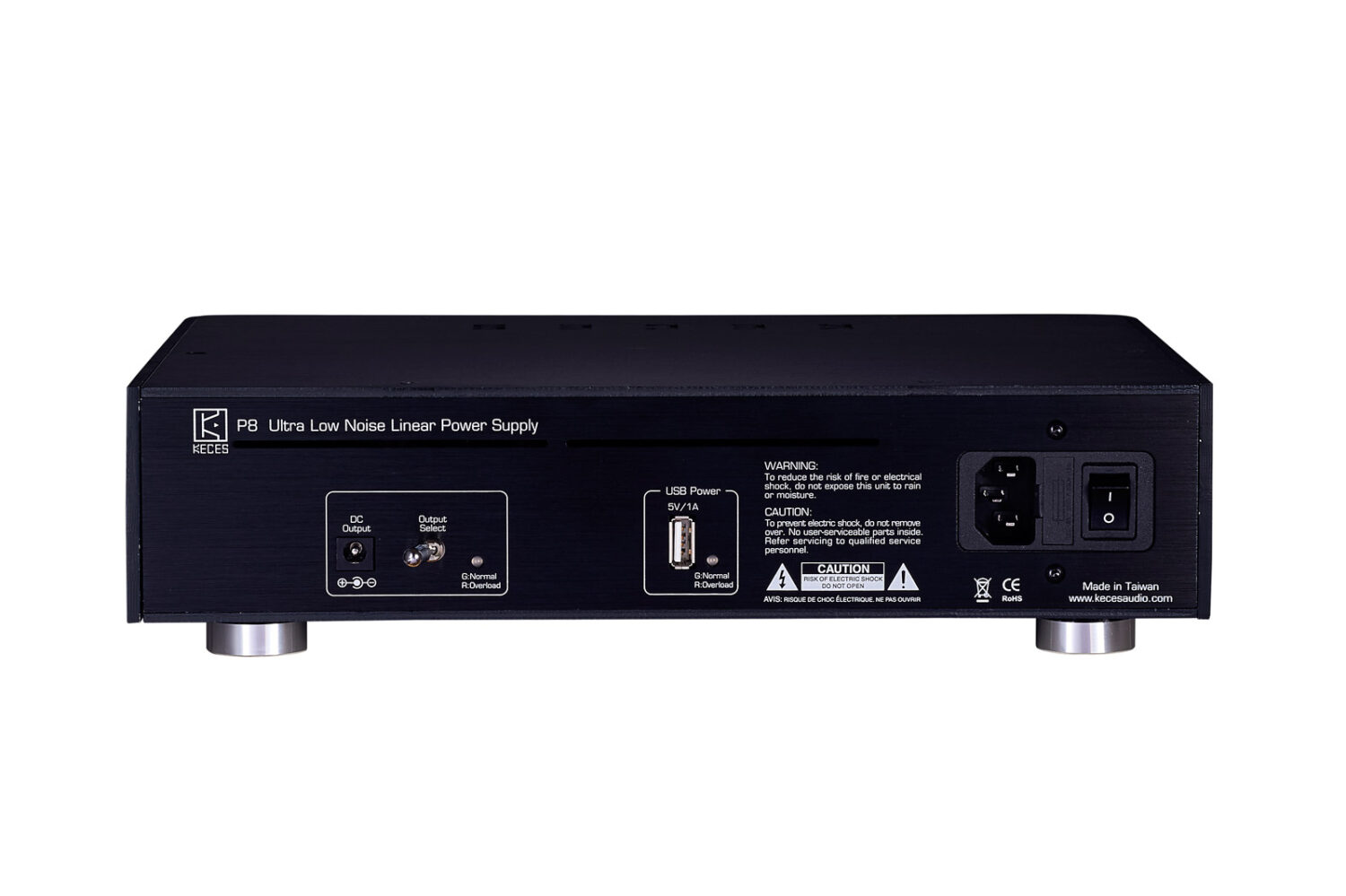

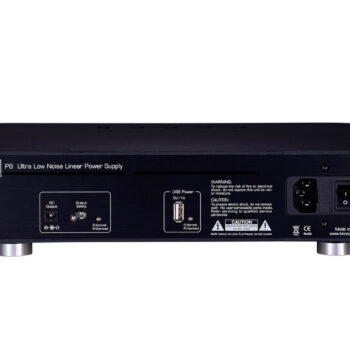

USB Type A 5V output
Dual output with USB output provide 4A for each with 1A USB output.
Single output with USB output provide 8A with 1A USB output.
Over Voltage Protection (OVP).
Over Current Protection (OCP).
Under Voltage Protection (UVP).
Over Temperature Protection (OTP).
The 4mm thickness of the aluminum chassis to effective to blocks EMI/RFI interference.

Compatibility & DC output version

Directly power DC 24V based phono stage or for all audio device that run on DC 24V.
Directly power DC 20V based Laptop or for all audio device that run on DC 20V.
Directly power DC 19V based NUC, Thin ITX system and Laptop or for all audio device that run on DC 19V.
Directly power DC 18V based Pro-Ject products or for all audio device that run on DC 18V.
Directly power DC 15V based Alpha Design Labs products or for all audio device that run on DC 15V.
Directly power DC 12V based Mac Mini or for all audio device that run on DC 12V.
Directly power DC 9V based SOtM products or for all audio device that run on DC 9V.
Directly power DC 7V based SOtM products or for all audio device that run on DC 7V.
Directly power DC 5V based Squeezebox or for audio device that run on DC 5V.
USB Output provide DC 5V @1A. Directly power DC5V based USB DAC.



SPECS:

Dual Output with USB Output
 5V/7V + 9V/12V with USB Output.
 9V/12V + 12V/15V with USB Output.
 9V/12V + 18V/19V with USB Output.
 9V/12V + 20V/24V with USB Output.
Single Output with USB Output
 9V/12V with USB Output.
19V/20V with USB Output.
DC Connector2.5mm Barrel
AC Input Voltage110V-120V, 60Hz / 220V-240V, 50Hz (Switchable)
Power Consumption200Watts (Full Load Output)
Casing4mm Aluminum
Dimension (WxDxH)300x220x66mm
Weight6KG

P8 Dual Output Cut Off Output condition

Output Voltage

Over Voltage Protection

Under Voltage Protection

Over Current Protection

Over Temperature Protection

5V

5.5V

4.5V

4.2A

80℃

7V

7.5V

6.5V

4.2A

80℃

9V

9.5V

8.5V

4.2A

80℃

12V

12.5V

11.5V

4.2A

80℃

15V

15.5V

14.5V

4.2A

80℃

18V

18.5V

17.5V

4.2A

80℃

19V

19.5V

18.5V

4.2A

80℃

20V

20.5V

19.5V

4.2A

80℃

24V

24.5V

23.5V

4.2A

80℃

P8 Single Output Cut Off Output condition

Output Voltage

Over Voltage Protection

Under Voltage Protection

Over Current Protection

Over Temperature Protection

9V

9.5V

8.5V

8.2A

80℃

12V

12.5V

11.5V

8.2A

80℃

19V

19.5V

18.5V

8.2A

80℃

20V

20.5V

19.5V

8.2A

80℃



Spänning/Volt

19/20V, 8A, MONO, 5/7V + 9/12V, 2x4A, 9/12 + 12/15V, 2x4A, 9/12 + 18/19V, 2x4A, 9/12 + 20/24V, 2x4A, 9/12V, 8A, MONO
