P815
“We took a leap of faith and decided to use Procella speakers in a very critical home cinema environment. The installation utilized three P815, two P18, three P10 and six P8 speakers. What an amazing surprise. You owe to yourself and your clients to put these speakers on your very short list. Excellent!”
DENNIS ERSKINE, The Erskine Group
The P815 is THX Approved for integration into professional rooms, including THX Certified Screening Rooms and THX pm3 (professional Mixing, Monitoring and Mastering) studios..
Description
“Audiophile accuracy and cinema impact make Procella’s P815 the ultimate home cinema/screening room main speaker”
CE PRO BEST AWARD

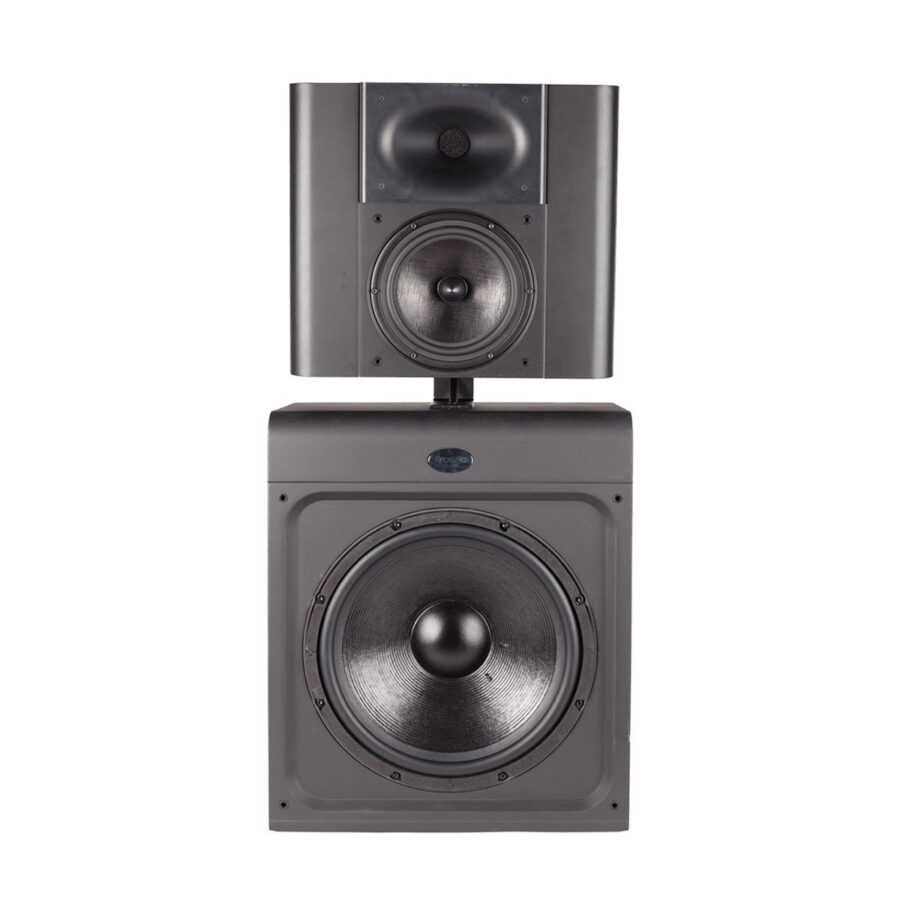

The P815 is the direct descendant of the original DTS preview theater main loudspeaker. This reference-quality, precision full-range speaker is designed for large home cinemas, studios, screening rooms and small cinemas. It combines the P8 reference loudspeaker with the P15Si 15” low-frequency module to produce THX cinema reference levels at an incredible 8 meters (over 26 feet). The P815 requires external biamplification. The Procella DA06-DSP two-channel power amplifier or DA2800-DSP four channel amplifier provides both DSP crossover and amplification for the P8 mid/high-frequency module and the P15Si low-frequency module. From revealing the smallest details to producing the awesome impact of a full-scale 96/24 recording or film soundtrack, with the P815 you become one with the performance. Winner of the prestigious CEPro BEST Award from CE Pro magazine and the Exc!te Award from Custom Retailer magazine, the loudspeaker is THX Approved for integration into professional rooms, including THX Certified Screening Rooms and THX pm3 (professional Mixing, Monitoring and Mastering) studios..
Specifications
MAXIMUM SPL | Free-standing 122dB continuous, 126dB peak, in baffle wall 126dB continuous, 132dB peak |
---|---|
FREQUENCY RESPONS | -3dB points 40Hz and 20kHz |
DISPERSION PATTERN | -6dB Constant directivity: 80°H x 50°V from 1.5kHz |
CROSSOVER | 4th Order Linkwitz-Reilly 1.6 kHz and 150Hz |
COMPONENTS | High Frequency 1.5” compression driver with a Polyester diaphragm on (P8) a Procella designed elliptical, Low Frequency 15” driver with 75mm voice coil in 92 (LF815) litre sealed box, Midrange 8” high output driver with 40mm (P8) voice coil in 15 litre sealed box |
CONNECTIVITY | 2 pair gold-plated binding posts |
AMPLIFIER | DA06-DSP, DA2800-DSP, external, Sold seperately |
CONSTRUCTION | Void free MDF internally cross braced Semi matte textured black paint finish |
DIMENSIONS AND WEIGHT | HxWxD 40.6″ x 18.9″ x 11.0″ / 1030 x 480 x 280 mm / 86.4 Lbs / 39.2 Kg |
SHIPPING CARTON | P8 HxWxD 19.75″ x 23.6″ x 12″ / 500 x 600 x 300 / 37.5 Lbs / 16.9 Kg – P15Si HxWxD 23.6″ x 28.4″ x 15.75″ / 600 x 720 x 400 mm / 63.9 Lbs / 29 Kg |
INCLUDED | connecting bracket, Damper feet, Protective grilles |
ASSEMBLY | Sweden 100% QC testing |
